How to Take Clinical Photos for Full-Arch Planning: A Lab's Field Guide

Full-arch planning is the most expensive workflow in the practice and the most expensive workflow in the lab. A hybrid that comes back for a second try-in because the smile line was guessed rather than measured costs the surgeon a half-day of chair time, costs the lab a remake, and costs the patient a month of waiting. Most of that risk lives in one place: the clinical photography packet that ships with the scan and the CBCT.

This is the protocol we ask referring clinicians to follow before we open a full-arch case in CAD. It is written for the general dentist running restorative, the prosthodontist driving the case plan, and the oral surgeon coordinating the prosthetic handoff. None of it requires gear you do not already own.

Why photos matter as much as the scan

The intraoral scan tells us where the teeth and tissue are. The CBCT tells us where the bone is. Neither tells us where the lip sits at rest, how much gingiva shows on a full smile, what the midline does relative to the face, or what the patient actually looks like. Those four data points drive tooth position on a full-arch prosthetic. Without them we are designing to a generic average, and a generic average is the reason anterior esthetics fail at try-in.

A properly shot photo set turns a full-arch case from a guessing exercise into a measured one. On cases where we receive the full eight-photo packet at the planning stage, internal tracking shows try-in revision rates roughly half of what we see on cases that arrive with scan and CBCT only. The packet takes seven minutes to shoot once your assistant has run through it twice.

The eight photos we need before opening CAD

The minimum viable packet for a full-arch case is eight images. Shoot them in this order so nothing gets missed.

1. Full face, lips at rest, frontal

Patient seated upright, head in natural position, looking straight at the lens. Lips relaxed and slightly parted. This is the photo that tells us how much tooth shows when the patient is not performing. For most adult patients between 40 and 60, that number sits around 1.5 to 3.5mm of maxillary central incisor display at rest, and it drops with age. We need to see the actual number for this patient, not the textbook one.

2. Full face, full smile, frontal

Same framing, same head position, patient asked for a genuine smile. We are looking for incisal edge position, gingival display, buccal corridor width, and the relationship of the smile line to the lower lip curvature. If the patient is a gummy smiler (more than 3mm of gingival display) we need to know before we set tooth position, because pink prosthetic above the smile line is the single most common esthetic complaint on hybrids.

3. Full face, profile

Side view, lips at rest. This tells us about lip support, nasolabial angle, and the AP position of the maxillary anteriors. On an edentulous or soon-to-be-edentulous maxilla, lip support is often the deciding factor between a hybrid and a fixed-detachable with a flange.

4. Retracted frontal, teeth together

Cheek retractors in, teeth in maximum intercuspation. Lens perpendicular to the midline. This is the reference image for midline cant, occlusal plane orientation, and existing tooth wear patterns.

5. Retracted frontal, teeth slightly apart

Same framing, jaw relaxed open about 2-3mm. We need to see the incisal edges of the upper anteriors without the lower teeth covering them. This is where we read incisal edge wear, translucency zones, and any existing restorative work on the anteriors.

6 and 7. Retracted laterals, left and right

Cheek retractor on the working side, lens angled to capture canine through second molar. Teeth in occlusion. These two photos give us the canine guidance pattern, the existing occlusal scheme, and the lateral profile of the ridge.

8. Occlusal view, maxilla

Mirror shot, full arch, lens perpendicular to the occlusal plane. On a partially dentate case we need the existing tooth positions as a starting reference. On an edentulous case the mirror shot of the ridge gives us the ridge crest contour relative to the planned tooth position.

If the case is dual-arch (which most full-arch cases are by the time they reach a surgeon's chair), shoot the same occlusal mirror on the mandible. That brings the packet to nine photos.

Camera settings that do not require a photographer

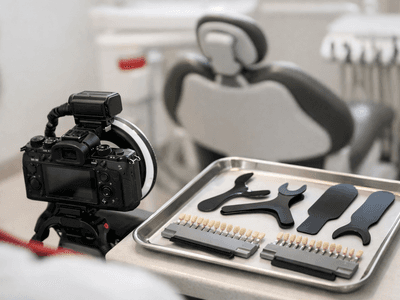

A DSLR with a 100mm macro and a ring or twin flash is the gold standard, but it is not required for the planning packet. A modern intraoral camera with a wide field of view, or even a current iPhone or Pixel in a clinical photography mount, will produce usable images if you control three things.

First, fix the white balance. Auto white balance shifts between every shot and makes shade communication impossible. Set the camera to flash white balance and leave it there.

Second, control the ambient light. Operatory overheads throw color casts. Either turn the overhead off for the photo set or position the patient so the overhead is not direct.

Third, get the exposure right on the teeth, not on the face. Underexposed teeth read gray and kill any shade information in the image. Lock exposure on the central incisors and let the surrounding skin fall where it falls.

What to include with the photos

The packet is photos plus context. With the eight images we need the planned restorative material (PMMA conversion, monolithic zirconia hybrid, individual zirconia crowns on a titanium bar), the planned shade and stump shade if anterior crowns are involved, the patient's age and gender, and one line on what the patient wants the smile to look like. Whiter than current, same as current, more natural with character: those three buckets cover most cases and they change how we set tooth shape and surface texture.

If a denture is being copied or modified, photograph the existing denture in the mouth as photo 9, and ship the denture itself to the lab. A scanned denture loses surface character that the physical denture preserves.

Send it before the surgical date, not with the impression

The most common workflow mistake we see is the photo packet arriving with the final impression. By that point the surgical guide is already designed, the provisional is already milled, and tooth position is locked. The packet needs to ship at the planning stage, before the guide is finalized, so the prosthetic drives the surgical plan rather than the other way around.

On cases where the planning packet arrives at the consultation stage, we can return a digital wax-up and a smile preview inside 72 hours. That preview becomes the conversation with the patient, the reference for the surgical guide, and the blueprint for the provisional. Three documents, one packet, seven minutes of chair time.
