Understanding Implant Abutment Design Choices: A Lab's Guide for Restorative Clinicians

Abutment design is where implant cases are won or remade. The fixture goes in straight, the scan captures cleanly, and then the case lands on a technician's bench with a series of decisions that decide whether the final restoration looks like a tooth or looks like an implant. This post walks through the choices we make on the bench at Dani Dental, what we ask clinicians to send us, and where the most common failure points hide.

This is written for restorative dentists, prosthodontists, oral surgeons, and periodontists who place or restore implants and want a clearer view of what their lab is actually doing with the case file.

Stock Versus Custom: The First Fork

Stock abutments are pre-manufactured by the implant company in a fixed set of heights, angulations, and emergence diameters. They are fast, predictable on the fit side, and appropriate for a narrow band of cases: posterior single units with healthy keratinized tissue, ideal gingival height, and a fixture placed at the textbook depth and angle. When all three boxes check, a stock abutment is the right tool.

The problem is that all three boxes rarely check at once. Real fixtures sit slightly buccal or slightly lingual. Real tissue heights vary 1 to 3 mm around the platform. Real emergence profiles need to transition from a round 4.1 mm platform to an oval molar contour. A stock abutment forces the crown to compensate for what the abutment cannot, which is how you end up with subgingival cement, a flat emergence, or a contour that traps plaque.

Custom abutments, milled from a scanned soft-tissue model and a planned final crown shape, solve all three. The margin sits where the technician wants it, typically 0.5 to 1.0 mm subgingival on the buccal and at tissue level on the lingual. The emergence profile is shaped to support the papilla. The angulation corrects for fixture position without loading the crown asymmetrically. For anterior cases, premolars in the esthetic zone, and any case with compromised tissue, custom is the default at our lab.

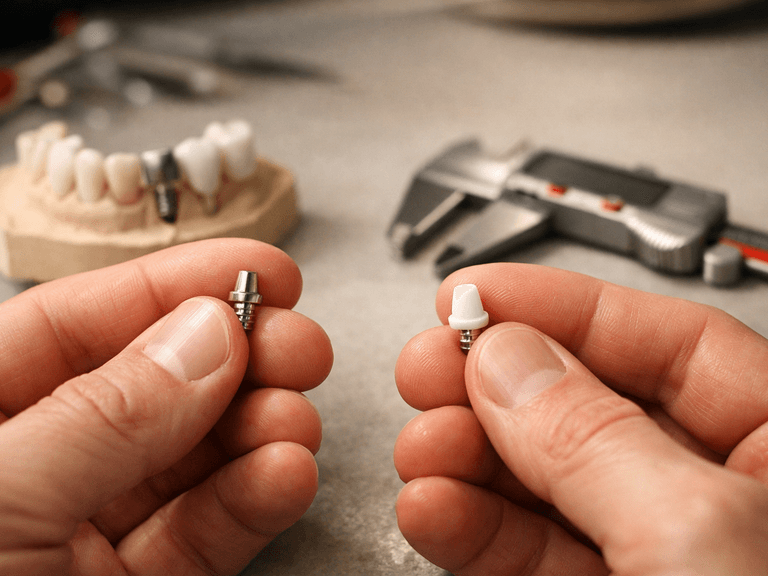

Titanium Versus Zirconia: Where Each Belongs

The material choice is not a preference question. It is a function of position, tissue biotype, and load.

Titanium custom abutments remain the workhorse. They are strong in thin cross-sections, they bond reliably to the titanium base on a two-piece design, and they tolerate the loads of a posterior occlusion without microfracture risk. Where they fall short is the esthetic zone with a thin gingival biotype. A gray shadow through 1 mm of tissue is a finding no clinician wants on the recall photograph.

Zirconia abutments solve the shadow problem and have become our standard for anterior single units where the biotype is thin or the smile line is high. Modern zirconia, milled from high-strength tetragonal blocks and bonded to a titanium base, gives the soft tissue a white substrate to drape over. The flexural strength is sufficient for anterior loads. We do not recommend full-zirconia abutments on posterior implants with heavy parafunction, and we will flag a case where the design risks chipping at the screw access channel.

A practical note on the hybrid design: a titanium base with a zirconia superstructure is not a compromise. It is the engineering answer to the question of how to get esthetic substrate at the gumline and reliable fixture-level connection at the platform. When the case planning conversation includes a thin biotype, an anterior position, and a high smile line, this is what we are building.

Screw-Retained Versus Cement-Retained

The field has moved decisively toward screw-retained restorations over the last decade, and our case mix reflects that. The reason is straightforward: residual subgingival cement is a leading cause of peri-implantitis, and a screw-retained restoration eliminates the cement entirely.

That said, screw-retained is not always possible. When the fixture is angled such that the screw access channel exits through the incisal edge or the buccal cusp tip, cement retention or an angulated screw channel (ASC) abutment becomes the answer. ASC abutments, available on most major implant systems now, let us redirect the screw access up to 25 degrees off the long axis of the fixture. We use them frequently on anterior cases where the surgeon placed the fixture for bone, not for prosthetics. The conversation we want with the surgical team happens before placement, not after.

When cement retention is unavoidable, we design the abutment with a supragingival or equigingival margin on the accessible surfaces, knowing the clinician will be cleaning cement off a margin they can see.

What We Need From the Clinician

The quality of the abutment design is bounded by the quality of the case file. The four items that change outcomes most:

• A full-arch intraoral scan with the scan body fully captured and the adjacent and opposing teeth in detail.
• A soft-tissue scan or a conventional impression of the emergence profile if the provisional has been shaping tissue for more than four weeks.
• A photograph of the shade tab held next to the prepared site, in natural light, with the teeth hydrated.
• A note on the planned occlusion, particularly whether the case is in group function or canine guidance.

On complex cases, especially full-arch and anterior multi-unit work, we ask for the CBCT and a planning call before the scan goes to the mill. Fifteen minutes on the phone with the technician on the case routinely saves a remake.

Where Cases Go Wrong

The failure patterns we see most often: a stock abutment chosen for an anterior case to save cost, an emergence profile designed without a soft-tissue model, a screw-retained design forced on a fixture that needed an ASC, and a zirconia abutment specified for a posterior bruxer. Each of these is preventable with a case planning conversation before the design starts.

Every case that leaves our lab ships with the technician's direct line. If the seat appointment surfaces something unexpected, the call goes to the person who built it, not a queue. That is the conversation that closes the loop and that is how the next case from the same clinician gets designed better than the last one.
