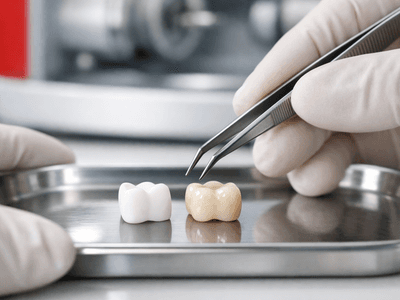

Zirconia vs Porcelain Crowns: What Actually Differs in the Lab

Referring dentists ask this question in two forms. The clinical form: which material gives this patient a 15-year restoration. The lab form: what is the prep, the cement protocol, the shade workflow, and the failure mode I am buying into. Both forms deserve a straight answer. Here is how the difference reads from the bench.

The Material Question in One Paragraph

A monolithic zirconia crown is milled from a single puck of yttria-stabilized zirconium dioxide. Flexural strength sits between 900 and 1,200 MPa for full-contour translucent zirconia, and climbs past 1,400 MPa for the older opaque generations still used on posterior bridges. A traditional porcelain crown, by contrast, is a layered feldspathic or leucite-reinforced ceramic, often pressed or stacked over a coping. Flexural strength for feldspathic porcelain ranges from 60 to 120 MPa. Lithium disilicate, which most clinicians group under the porcelain umbrella in conversation, sits at roughly 360 to 400 MPa. So the strength gap is not subtle. Zirconia is three to ten times stronger than the layered ceramics it gets compared to.

That strength gap is the whole reason the conversation exists. If porcelain were as fracture-resistant as zirconia, no one would mill zirconia for an anterior central. If zirconia matched feldspathic translucency at the incisal edge, no one would stack porcelain anymore. Neither is true. The materials trade strength for optics on a sliding scale, and the case dictates where on the scale the restoration lands.

Where Each Material Wins

Zirconia owns the posterior. Second molars, bruxers, patients with a history of fractured restorations, full-arch screw-retained hybrids, three-unit and four-unit posterior bridges. The 2019 systematic review by Sailer and colleagues in Dental Materials reported five-year survival of 95.7% for monolithic zirconia single crowns versus 90.4% for metal-ceramic, with chipping rates under 1% for full-contour zirconia compared to 8% to 12% for layered restorations. That is the bench data referring dentists are actually buying. A posterior crown that does not chip, does not fracture, and does not come back as a remake at month 18.

Porcelain, specifically layered feldspathic over a zirconia or lithium disilicate substructure, wins the anterior esthetic case. The incisal halo, the internal characterization, the way light passes through the incisal third on a maxillary central, none of that is available from a fully monolithic mill. Press-and-layer workflows for anterior six cases still ship from the bench, hand-built, because the optics demand it. Translucency values for feldspathic porcelain land between 35% and 45% on standardized contrast ratio testing. Translucent monolithic zirconia caps out around 25% to 30%, and that is the new generation. The earlier opaque zirconia sat near 15%.

Lithium disilicate is the middle path. Strength of 360 to 400 MPa, translucency near 38%, monolithic mill or press workflow, bonded cementation. For a single anterior crown on a patient who clenches, lithium disilicate is often the cleanest answer. It is not as strong as zirconia, not as translucent as stacked feldspathic, but it does both well enough that it has become the default for anterior single units in most case-planning conversations at the lab.

The Prep, Cement, and Workflow Differences That Matter

This is where the lab conversation gets practical for the referring practice. A zirconia crown tolerates a more conservative prep. Minimum occlusal reduction of 0.8 mm to 1.0 mm for monolithic full-contour, versus 1.5 mm to 2.0 mm for layered porcelain-fused-to-metal or stacked all-ceramic. That difference is real chair time and real tooth structure preserved, especially on retreatment cases where there is not much enamel left to work with.

Cementation protocol diverges sharply. Zirconia can be conventionally cemented with resin-modified glass ionomer or self-adhesive resin cement. It does not require etching. The internal surface is air-abraded with 50-micron aluminum oxide at the lab, and a primer with MDP monomer (Clearfil Ceramic Primer or equivalent) handles the chemical bond. Porcelain and lithium disilicate require hydrofluoric acid etch at the lab or chairside, silane application, and bonded resin cementation. That is more steps, more isolation discipline, and more sensitivity to moisture contamination at delivery. For a busy general practice running 30 minutes per seat, the zirconia protocol is operationally simpler. That matters.

Shade workflow is the other divergence. Zirconia shade is set by the puck. We mill from a pre-shaded blank in the A-D range or the bleach range, and characterization is applied as surface stain and glaze. The fidelity to a Vita 3D-Master shade tab on a monolithic zirconia central is good but not perfect. Layered porcelain over a coping is shade-matched at the bench by a ceramist building the restoration in increments, comparing under daylight-corrected lighting, and adjusting internal effects. For an anterior shade-match against a natural contralateral, the layered workflow still wins. For a posterior crown where the shade target is the adjacent molar, monolithic zirconia is faster and clinically indistinguishable at conversational distance.

How We Talk About This in a Case Plan

When a doctor sends a case to the lab with a prescription that says "crown, tooth 14, A2," the bench makes the material call based on the prep, the opposing dentition, the patient history if it was included, and the photographs. We will call back if the case warrants a different material than what was prescribed. A bruxer with a worn opposing surface getting layered porcelain on a second molar is a remake waiting to happen, and the conversation needs to happen before the puck gets cut, not after the patient is in the chair at delivery.

That callback is the part that does not show up on a material spec sheet. Zirconia versus porcelain is a real technical question with real answers. The lab partner is the one making sure the answer matches the case in front of you, not the textbook case the material was designed for. Every case at our bench ships with the technician's direct line on the invoice. If the material call needs a second conversation, we want to have it before the case goes to mill.
